在精密制造領域，電泳線作為表面處理的核心設備，其安裝流程堪稱工業工程與材料科學的交叉典范。這條由槽體、循環系統、電源裝置、烘干模塊等組成的“金屬涂裝生產線”，其安裝精度直接決定涂層附著力、均勻性及防腐性能。本文將以技術流程為主線，揭示電泳線安裝的工藝密碼。

　　In the field of precision manufacturing, electrophoresis lines, as the core equipment for surface treatment, can be regarded as a model of the intersection of industrial engineering and materials science in terms of their installation process. The installation accuracy of this "metal coating production line" composed of tank body, circulation system, power supply device, drying module, etc. directly determines the adhesion, uniformity, and anti-corrosion performance of the coating. This article will focus on the technical process and reveal the process code for installing electrophoresis lines.

　　一、安裝前準備：三維勘驗與模塊化預裝

　　1、 Preparation before installation: 3D inspection and modular pre installation

　　1. 場地適應性評估

　　1. Site adaptability assessment

　　安裝團隊需對場地進行“三維體檢”：

　　The installation team needs to conduct a "3D physical examination" of the site:

　　地質勘驗：通過地質雷達探測地基承載力，對軟弱土層采用預應力管樁加固，確保設備沉降量≤2mm。

　　Geological survey: By using geological radar to detect the bearing capacity of the foundation, prestressed pipe piles are used to reinforce weak soil layers to ensure that the equipment settlement is ≤ 2mm.

　　空間規劃：運用BIM技術模擬設備布局，預留1.2米維護通道，0.8米安全間距，管線排布遵循“最短路徑原則”。

　　Space planning: Use BIM technology to simulate equipment layout, reserve 1.2-meter maintenance channels, 0.8-meter safety spacing, and follow the "shortest path principle" for pipeline layout.

　　環境監測：檢測溫濕度、腐蝕性氣體濃度，為設備防腐等級選擇提供數據支撐。

　　Environmental monitoring: detecting temperature, humidity, and concentration of corrosive gases to provide data support for selecting equipment anti-corrosion levels.

　　2. 設備完整性驗證

　　2. Equipment integrity verification

　　采用三級驗收機制：

　　Adopting a three-level acceptance mechanism:

　　開箱檢驗：核對設備型號、接口方位，重點檢查濾袋、電極等核心部件的密封包裝完整性。

　　Open box inspection: Check the equipment model and interface orientation, with a focus on inspecting the sealing and packaging integrity of core components such as filter bags and electrodes.

　　預組裝測試：對分段運輸設備進行模擬組裝，驗證連接法蘭同軸度偏差≤0.5mm。

　　Pre assembly testing: Simulate the assembly of segmented transportation equipment to verify that the coaxiality deviation of the connecting flange is ≤ 0.5mm.

　　功能預檢：對循環泵、整流柜等動設備進行72小時空載試運轉，記錄軸承溫升曲線，確保溫升≤40℃。

　　Function pre check: Conduct a 72 hour no-load test run on dynamic equipment such as circulation pumps and rectifier cabinets, record the bearing temperature rise curve, and ensure that the temperature rise is ≤ 40 ℃.

　　3. 基礎工程處理

　　3. Basic engineering treatment

　　創新采用復合地基技術：

　　Innovatively adopting composite foundation technology:

　　樁基加固：對軟土地基采用預應力管樁，樁端進入持力層深度≥1.5米，單樁承載力≥800kN。

　　Pile foundation reinforcement: Prestressed pipe piles are used for soft soil foundation, with the pile end entering the bearing layer at a depth of ≥ 1.5 meters and a single pile bearing capacity of ≥ 800kN.

　　隔振設計：設置橡膠減振墊與彈簧隔振器組合系統，振動傳遞率≤5%，避免設備共振。

　　Vibration isolation design: Install a combination system of rubber damping pads and spring isolators, with a vibration transmission rate of ≤ 5%, to avoid equipment resonance.

　　預埋件施工：采用激光準直儀進行地腳螺栓定位，垂直度偏差≤1‰，確保設備安裝精度。

　　Construction of pre embedded parts: Laser collimator is used for anchor bolt positioning, with a verticality deviation of ≤ 1 ‰ to ensure equipment installation accuracy.

　　二、主體安裝：毫米級精度控制體系

　　2、 Main installation: millimeter level precision control system

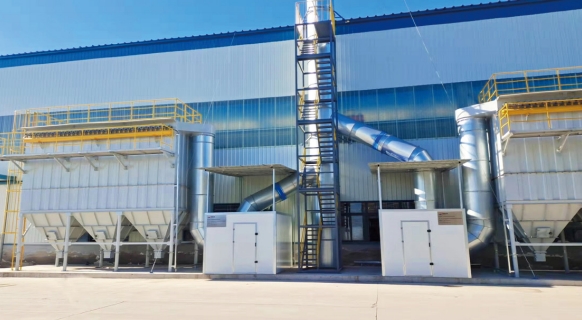

　　1. 鋼結構安裝

　　1. Steel structure installation

　　開發模塊化施工工藝：

　　Develop modular construction technology:

　　分段組裝：將電泳槽體劃分為灰斗、中箱體、上箱體三大模塊，各模塊對接面精度控制在±0.2mm。

　　Segmented assembly: Divide the electrophoresis tank into three modules: ash hopper, middle box, and upper box. The precision of the docking surface of each module is controlled within ± 0.2mm.

　　焊接工藝：采用CO?氣體保護焊，焊縫進行100%PT無損檢測，確保氣密性。

　　Welding process: CO? gas shielded welding is used, and the weld seam undergoes 100% PT non-destructive testing to ensure airtightness.

　　防腐處理：底漆采用無機富鋅涂料，面漆選用氟碳樹脂漆，干膜厚度≥120μm，耐鹽霧性能≥1000小時。

　　Anti corrosion treatment: The primer adopts inorganic zinc rich coating, and the topcoat adopts fluorocarbon resin paint. The dry film thickness is ≥ 120 μ m, and the salt spray resistance is ≥ 1000 hours.

　　2. 過濾系統安裝

　　2. Installation of filtration system

　　建立標準化作業程序：

　　Establish standardized operating procedures:

　　濾袋安裝：采用專用工裝進行張力控制，每米濾袋拉伸力偏差≤±5N，花板孔同心度≤0.5mm。

　　Filter bag installation: Special fixtures are used for tension control, with a deviation of ≤ ± 5N in tensile force per meter of filter bag, and a concentricity of ≤ 0.5mm for flower plate holes.

　　電磁脈沖閥：安裝前進行動作特性試驗，開啟響應時間≤50ms，閥座密封性測試壓力≥0.6MPa。

　　Electromagnetic pulse valve: Conduct an action characteristic test before installation, with an opening response time of ≤ 50ms and a valve seat sealing test pressure of ≥ 0.6MPa.

　　噴吹管定位：采用激光對中儀確保噴吹管與花板間距偏差≤±1mm，脈沖氣流擴散角控制在15°-20°。

　　Spray tube positioning: Use a laser centering device to ensure that the distance deviation between the spray tube and the flower plate is ≤± 1mm, and the pulse airflow diffusion angle is controlled at 15 ° -20 °.

　　3. 電氣儀表安裝

　　3. Installation of electrical instruments

　　構建智能控制系統：

　　Building an intelligent control system:

　　接地系統：采用等電位聯結，設備外殼接地電阻≤1Ω，電纜屏蔽層單端接地。

　　Grounding system: equipotential bonding is adopted, the grounding resistance of the equipment shell is ≤ 1 Ω, and the cable shielding layer is grounded at one end.

　　儀表校驗：壓差變送器進行三點校驗，精度等級不低于0.5級，量程比≥10:1。

　　Instrument calibration: The differential pressure transmitter undergoes three-point calibration, with an accuracy level of not less than 0.5 and a range ratio of ≥ 10:1.

　　PLC編程：開發自適應控制算法，實現風量-壓差-清灰頻率的智能聯動，響應時間≤100ms。

　　PLC programming: Develop adaptive control algorithms to achieve intelligent linkage of air volume pressure difference dust cleaning frequency, with a response time of ≤ 100ms.

　　三、系統調試：從單機到聯動的性能驗證

　　3、 System Debugging: Performance Verification from Single Machine to Linkage

　　1. 氣密性檢測

　　1. Airtightness testing

　　采用三級檢漏法：

　　Adopting a three-level leak detection method:

　　初步檢漏：用熒光劑進行負壓檢漏，壓力降至-5kPa時泄漏點熒光顯示清晰可見。

　　Preliminary leak detection: Use fluorescent agent for negative pressure leak detection, and when the pressure drops to -5kPa, the leak point fluorescence display is clearly visible.

　　精密檢測：采用氦質譜檢漏儀，檢測靈敏度≤1×10??Pa·m3/s，確保系統年泄漏率≤0.5%。

　　Precision testing: using a helium mass spectrometer leak detector with a detection sensitivity of ≤1×10??Pa·m3/s, ensuring an annual leakage rate of ≤ 0.5% for the system.

　　耐久試驗：在-8kPa壓力下保持72小時，壓降變化率≤2%，驗證密封件耐久性。

　　Durability test: Maintain a pressure of -8kPa for 72 hours, with a pressure drop change rate of ≤ 2%, to verify the durability of the seal.

　　2. 性能參數標定

　　2. Performance parameter calibration

　　建立動態標定模型：

　　Establish a dynamic calibration model:

　　風量標定：采用畢托管矩陣進行流場測量，風速均勻性系數≥0.85，確保槽體內流場均勻。

　　Airflow calibration: Flow field measurement is carried out using a Pitot tube matrix, with a wind speed uniformity coefficient of ≥ 0.85 to ensure uniform flow field inside the tank.

　　阻力測試：繪制壓降-風量特性曲線，與理論值偏差≤5%，驗證系統阻力特性。

　　Resistance test: Draw a pressure drop air flow characteristic curve with a deviation of ≤ 5% from the theoretical value to verify the system's resistance characteristics.

　　排放檢測：在額定工況下進行顆粒物濃度檢測，滿足GB 16297-1996標準，排放濃度≤30mg/m3。

　　Emission testing: Conduct particle concentration testing under rated operating conditions to meet the GB 16297-1996 standard, with an emission concentration of ≤ 30mg/m3.

　　3. 聯鎖保護試驗

　　3. Interlocking protection test

　　構建五重保護體系：

　　Building a five fold protection system:

　　壓差保護：設置三級報警閾值，壓差異常時自動啟動備用清灰程序。

　　Differential pressure protection: Set a three-level alarm threshold, and automatically start the backup dust cleaning program when the differential pressure is abnormal.

　　溫度保護：在進風口設置雙金屬溫度計，超溫時聯動關閉熱風閥，響應時間≤5s。

　　Temperature protection: Install a bimetallic thermometer at the air inlet, and when the temperature exceeds the limit, the hot air valve will be closed in a coordinated manner with a response time of ≤ 5s.

　　振動保護：安裝三向加速度傳感器，振動幅值超限觸發停機保護，安全系數≥1.5。

　　Vibration protection: Install a three-way acceleration sensor, triggering shutdown protection when the vibration amplitude exceeds the limit, with a safety factor of ≥ 1.5.

　　四、質量管控：全生命周期管理理念

　　4、 Quality control: full lifecycle management concept

　　1. 數字化追溯系統

　　1. Digital traceability system

　　開發施工管理平臺：

　　Development and Construction Management Platform:

　　BIM協同：建立設備-管道-儀表三維模型，實現碰撞檢測與施工模擬，減少設計變更率。

　　BIM collaboration: Establish 3D models of equipment, pipelines, and instruments to achieve collision detection and construction simulation, reducing design change rates.

　　二維碼追溯：為每個部件賦予唯一身份碼，記錄安裝參數與檢驗數據，實現全生命周期追溯。

　　QR code traceability: Assign unique identification codes to each component, record installation parameters and inspection data, and achieve full lifecycle traceability.

　　智能監控：部署無線傳感器網絡，實時監測設備運行狀態，預警準確率≥95%。

　　Intelligent monitoring: Deploy wireless sensor networks to monitor device operation status in real time, with a warning accuracy rate of ≥ 95%.

　　2. 驗收標準體系

　　2. Acceptance criteria system

　　制定量化驗收準則：

　　Develop quantitative acceptance criteria:

　　外觀質量：涂層附著力達到GB/T 9286-1998規定的1級標準，劃格法測試涂層脫落率≤5%。

　　Appearance quality: The adhesion of the coating meets the Level 1 standard specified in GB/T 9286-1998, and the coating detachment rate is ≤ 5% according to the grid test.

　　幾何精度：箱體垂直度偏差≤2‰，進出口法蘭平行度≤0.3mm/m，確保設備對接精度。

　　Geometric accuracy: The verticality deviation of the box body is ≤ 2 ‰, and the parallelism of the inlet and outlet flanges is ≤ 0.3mm/m, ensuring the accuracy of equipment docking.

　　性能指標：本體漏風率≤3%，排放濃度≤10mg/m3，滿足超低排放要求。

　　Performance indicators: The air leakage rate of the main body is ≤ 3%, and the emission concentration is ≤ 10mg/m 3, meeting the ultra-low emission requirements.

　　3. 運維接口預留

　　3. Reserved operation and maintenance interfaces

　　構建智能運維基礎：

　　Building an intelligent operation and maintenance foundation:

　　預留接口：在關鍵部位設置在線監測接口，支持未來加裝PM2.5傳感器、VOCs檢測儀等設備。

　　Reserved interface: Set up online monitoring interfaces at key locations to support the installation of PM2.5 sensors, VOCs detectors, and other equipment in the future.

　　維護通道：設置永久性檢修平臺，配備安全護欄與防墜落裝置，符合OSHA標準。

　　Maintenance channel: Set up a permanent maintenance platform, equipped with safety guardrails and fall prevention devices, in compliance with OSHA standards.

　　檔案移交：提供數字孿生模型與預防性維護手冊，包含200項標準作業程序，縮短運維培訓周期。

　　File transfer: Provide digital twin models and preventive maintenance manuals, including 200 standard operating procedures, to shorten the operation and maintenance training cycle.
